Description

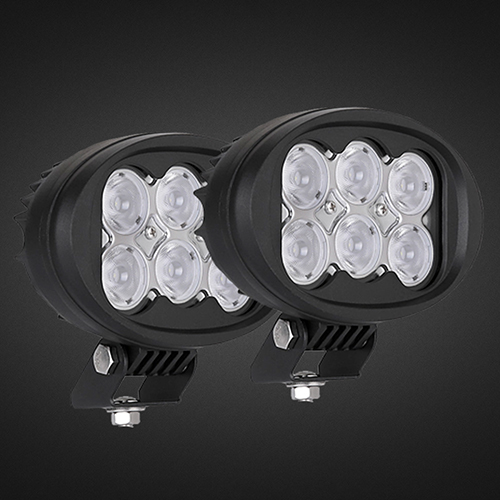

4x6 Inch 60W Oval LED Work Light for Tractors, Trucks and Machinery

The Pro Vision Lighting™ 4x6-inch 60W oval LED work light is a compact, high-output flood lamp for vehicles and equipment that need dependable work-area lighting. Its slim oval profile is suited to tight mounting positions on tractors, agricultural machinery, trucks, trailers, construction plant, utility vehicles and industrial equipment.

Six genuine high-intensity 10W CREE LEDs produce 6,000 lumens per light in a clean 5500K pure-white colour. The broad flood beam is designed to illuminate work zones around machinery, loading areas, service bodies and off-road work sites.

Compact 4x6-Inch Work Light for Tight Mounting Locations

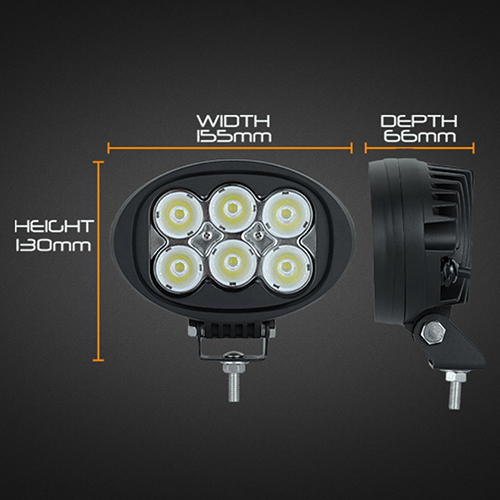

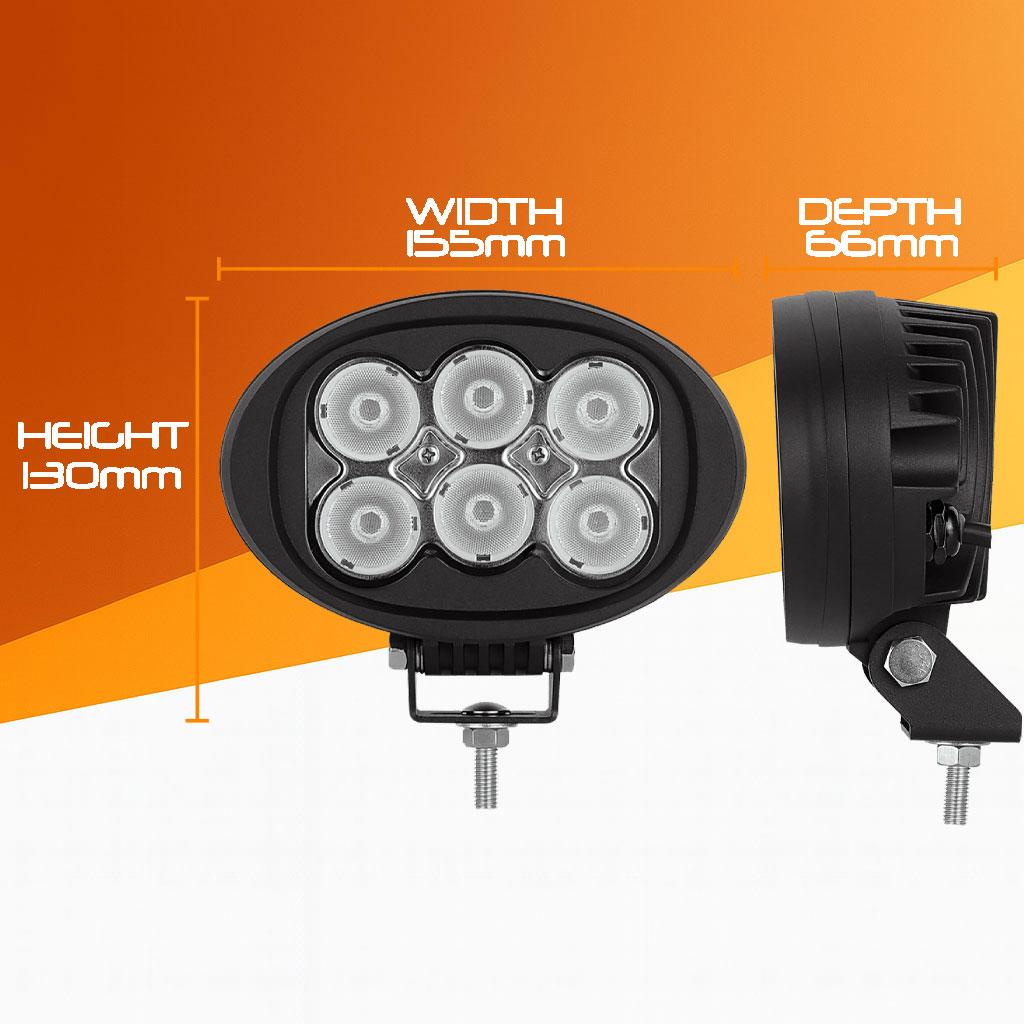

Where space is limited, the housing shape matters as much as the light output. Measuring W155 × H130 × D66 mm, this compact oval LED work light gives tractors, plant, trucks and utility builds a practical lighting option where a larger square or round lamp may be difficult to position. The heavy-duty 304 stainless-steel bracket assembly supports secure installation on working vehicles and machinery.

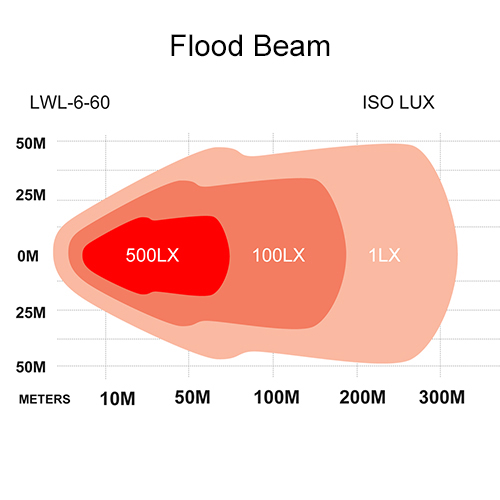

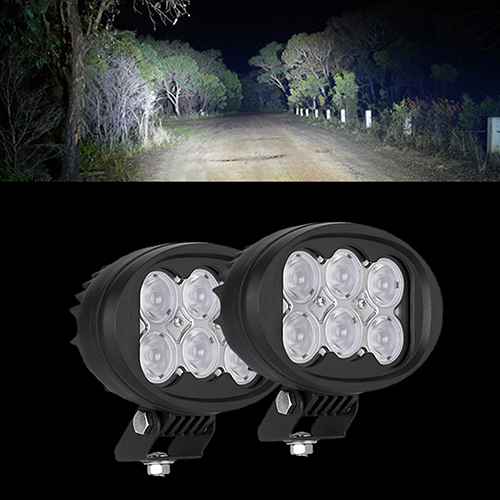

6,000-Lumen Flood Lighting for Work Areas

Precision Parabolic Plus optical lenses and hybrid lens technology help spread the output smoothly across the work area. The flood pattern provides wide coverage for reversing, loading, servicing, operating machinery and setting up after dark. The 5500K pure-white output is selected for clear, functional task lighting.

9–32V DC Compatibility for 12V and 24V Systems

This 60W LED work light operates from 9–32V DC, making it suitable for both 12V and 24V electrical systems. Current draw is specified at 5.2A ±0.2A at 12V.

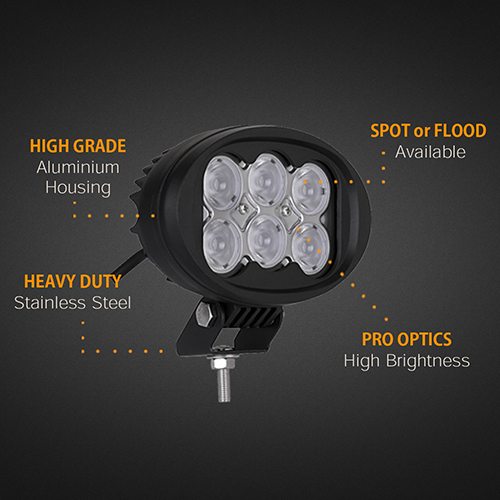

Heavy-Duty Construction for Working Environments

The high-grade aluminium alloy housing and virtually unbreakable polycarbonate lens are designed for demanding vehicle and machinery applications. Waterproof connectors assist with reliable electrical connection, while the IP68-rated enclosure provides water and dust protection. The light is specified with 15Grms vibration resistance across 24–2000Hz and 12G shock testing, helping it suit equipment exposed to regular vibration and rough terrain.

With a -40°C to +85°C operating-temperature range, 50,000-hour rated operating life and 5-year warranty, this compact work lamp is built for regular use in demanding work environments.

Ideal Applications

  • Tractors, harvesters and agricultural machinery
  • Trucks, trailers, service bodies and utility vehicles
  • Construction, earthmoving and industrial equipment
  • Off-road support vehicles and work utes
  • Loading zones, machine surrounds and work areas
  • Compact mounting locations where larger work lamps do not fit

Why Choose Pro Vision Lighting™?

Pro Vision Lighting™ supplies LED and HID lighting solutions for automotive, agricultural and industrial applications. This 4x6-inch oval LED work light combines compact dimensions, genuine CREE LED technology, broad flood-beam coverage and durable mounting hardware for buyers who need useful light output without sacrificing mounting space.

For additional sizes and outputs, browse the LED Work Lights range.

Technical Specifications

  • Part Number: LWL-6-60W-OV
  • Type: 4x6-inch 60W oval LED work light
  • LEDs: 6 × genuine high-intensity 10W CREE LEDs
  • Light Output: 6,000 lumens per light
  • Colour Temperature: 5500K pure white
  • Power: 60W
  • Voltage: 9–32V DC; suitable for 12V and 24V systems
  • Current Draw: 5.2A ±0.2A at 12V
  • Operating Temperature: -40°C to +85°C
  • Rated Operating Life: 50,000 hours
  • Optics: Precision Parabolic Plus optical lenses with hybrid lens technology
  • Beam Type: Flood
  • Housing: High-grade aluminium alloy
  • Lens: Virtually unbreakable polycarbonate
  • Mounting Bracket: Heavy-duty 304 stainless-steel bracket assembly
  • Connection: Waterproof connectors
  • Ingress Protection: IP68 water and dust protection
  • Vibration / Shock Resistance: 15Grms, 24–2000Hz; 12G shock, 8-hour non-stop logarithmic testing
  • Size: W155 × H130 × D66 mm (6.1 × 4 inches )
  • Net Weight: 2 kg
  • Certification: EMC, CE and RoHS
  • Warranty: 5-year warranty

Overview

  • PRODUCT TYPE: 4x6-inch 60W oval LED work light.
  • APPLICATION: Compact work lighting for tractors, agricultural machinery, trucks, trailers, construction plant, utility vehicles and industrial equipment.
  • LED TECHNOLOGY: Six genuine high-intensity 10W CREE LEDs.
  • LIGHT OUTPUT: 6,000 lumens per light.
  • OPTICS: Precision Parabolic Plus optical lenses with hybrid lens technology for smooth, even work-area coverage.
  • BEAM TYPE: Flood beam for broad lighting around machinery, loading zones and work areas.
  • COLOUR TEMPERATURE: 5500K pure white.
  • VOLTAGE: 9–32V DC, suitable for 12V and 24V electrical systems.
  • CURRENT DRAW: 5.2A ±0.2A at 12V.
  • CONSTRUCTION: High-grade aluminium alloy housing with a virtually unbreakable polycarbonate lens.
  • MOUNTING & CONNECTION: Heavy-duty 304 stainless-steel bracket assembly with waterproof connectors.
  • PROTECTION: IP68 water and dust protection.
  • VIBRATION & SHOCK RESISTANCE: 15Grms from 24–2000Hz; 12G shock tested for 8 hours of non-stop logarithmic testing.
  • OPERATING CONDITIONS: -40°C to +85°C operating temperature; 50,000-hour rated operating life.
  • SIZE: W155 × H130 × D66 mm (6.1 × 4 inches).
  • NET WEIGHT: 2 kg.
  • CERTIFICATION: EMC, CE and RoHS.
  • DELIVERY: Free Air Express worldwide, typically 5–10 business days depending on quantity and location.
  • WARRANTY: 5-year warranty.
